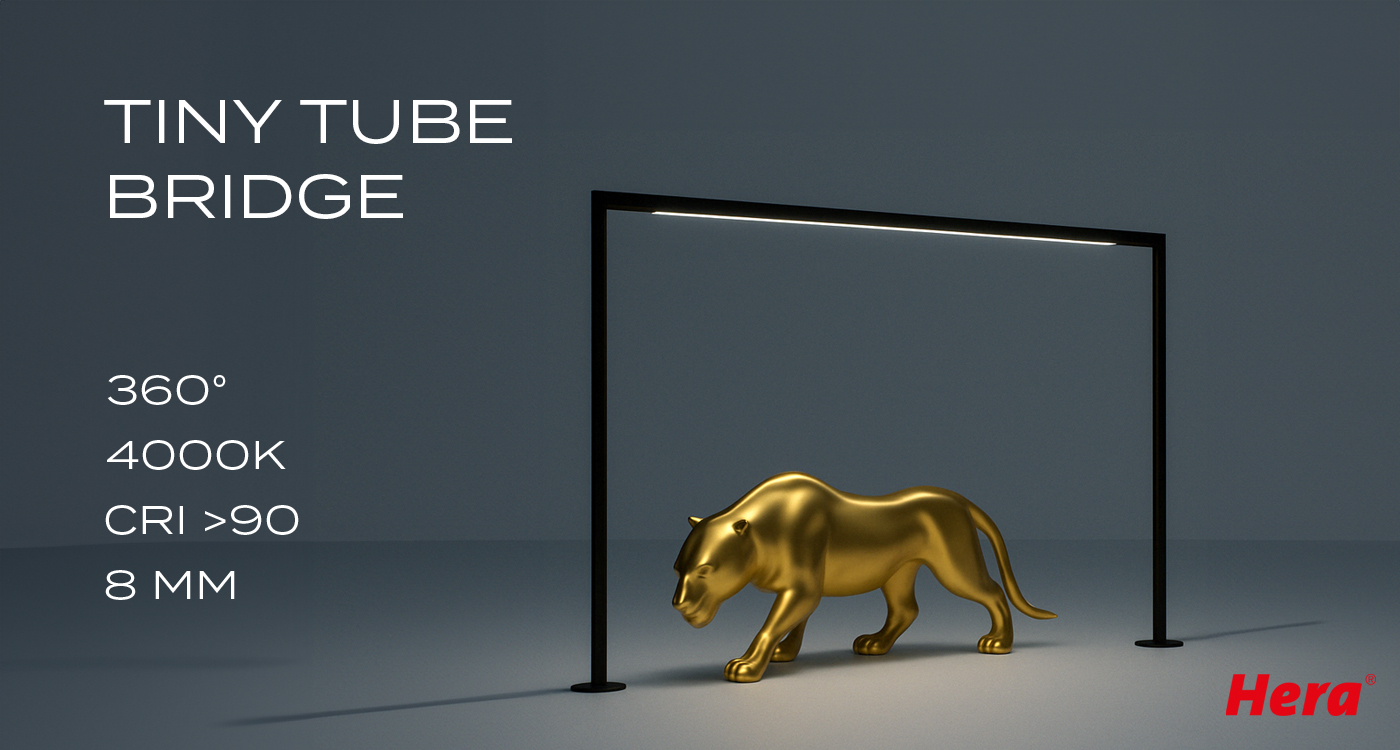

Tiny Tube Bridge is a premium-class LED bridge luminaire with an ultra-slim diameter of just 8 mm – designed for precise and elegant lighting solutions in the most demanding applications.

It delivers focused, high-quality light and ensures the spotlight stays exactly where it belongs – on your products.

The innovative 360° rotation and stepless height adjustment allow precise lighting control for various presentation scenarios – from delicate museum exhibits to high-end retail displays.

Thanks to its reduced design and slim, installation-friendly construction, the luminaire integrates seamlessly into furniture, showcases, or exhibition systems.

Tiny Tube Bridge consists of:

• an ultra-slim LED light bar (Ø 8 mm), available in three lengths: 254 mm, 354 mm, and 454 mm
• two side-mounted holders (Tiny Tube Bridge Pier L+R)
• an optional center connector (Tiny Tube Bridge Pier T) for central extension

Product Highlights

• Only 8 mm diameter – visually minimal, structurally strong
• Available in three lengths (e.g. 254 mm and more)
• 360° rotatable LED light bar for optimal alignment
• Height-adjustable for precise light focus
• Dimmable and color-consistent (CRI >90, 4000K neutral white)
• Modular system: compatible with Bridge Pier L+R and optional center connector (Bridge Pier T)
• Powered by a 24V DC LED driver
• Energy-efficient: 120 lm/W (LED), up to 309 lm total light output
• Long lifespan: L90/B10 ≥ 36,000 h

Typical applications:
Jewelry showcases, watch displays, museum exhibits, integrated boutique lighting, premium LED lighting for retail, minimalist furniture illumination.
