Tiny Tube Bridge
| 126° | Ø |
|---|---|
| 0,5 m | 1,95 |
| 1,0 m | 3,90 |
| 1,5 m | 5,85 |
| 2,0 m | 7,80 |
| 2,5 m | 9,75 |
Drilling hole
14 mm
Tiny Tube Bridge 544mm 6,3W nw black

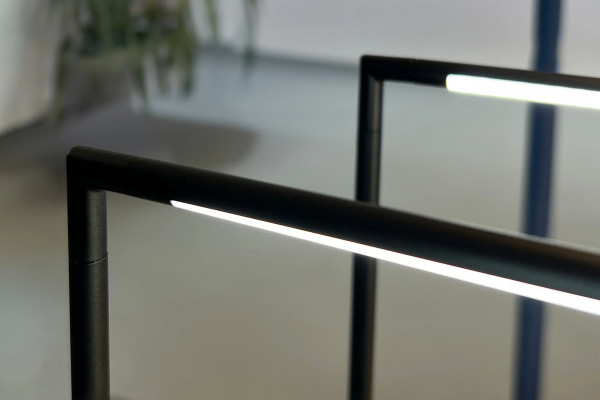

Mini Vitrinenlights with a diameter of only 8 mm
Description:
Drehbarer LED Rod, light colour neutral white approx. 4000 K, required Accessories: Bridge Pier L+R and with Bridge Pier T optional as Mittelstück verlängerbar. Light colour: 4000 K neutral white.Connection:
LED-Trafo DC 24VEnergy efficiency:
LED: 120 lm/W; Leuchte: 649 lm/m (103 lm/W)Special features:
- Height continuously adjustable
- Dimmable
- Rotatable
- Light colour: 4000 K neutral white
- 360° rotatable
- Design: Up-&-Down-Light
- LED Transformer DC 24 V
- Connector system: LED 24
- Protection rating: IP20
- Housing colour: Black
Hinweis:
- Only operate with a suitable power supply for LED Transformer DC 24 V and LED 24 connector system
Order number:
20203603013
limited availability
available versions
Choose from the options below. The currently selected one is highlighted in color.
| article number | description | energy efficiency |
|---|---|---|
| 20203603003 | Tiny Tube Bridge 254mm 3,0W nw black | LED: 120 lm/W; Leuchte: 309 lm/m (103 lm/W) |
| 20203603013 | Tiny Tube Bridge 544mm 6,3W nw black | LED: 120 lm/W; Leuchte: 649 lm/m (103 lm/W) |
| 20203603023 | Tiny Tube Bridge 844mm 9,5W nw black | LED: 120 lm/W; Leuchte: 980 lm/m (103 lm/W) |
