Preview: Flat LED recessed light for 35/45 mm cut-outs AR 35

Preview: Flat LED recessed light for 35/45 mm cut-outs AR 35 2,2W ww stainless-steel look

Flat LED recessed light for 35/45 mm cut-outs AR 35

AR 35

52°	Ø	ww	nw
0,5m	488	1160 lx	1076 lx
1,0m	975	290 lx	269 lx
1,5m	1463	129 lx	120 lx
2,0m	1951	73 lx	67 lx
2,5m	2439	46 lx	43 lx

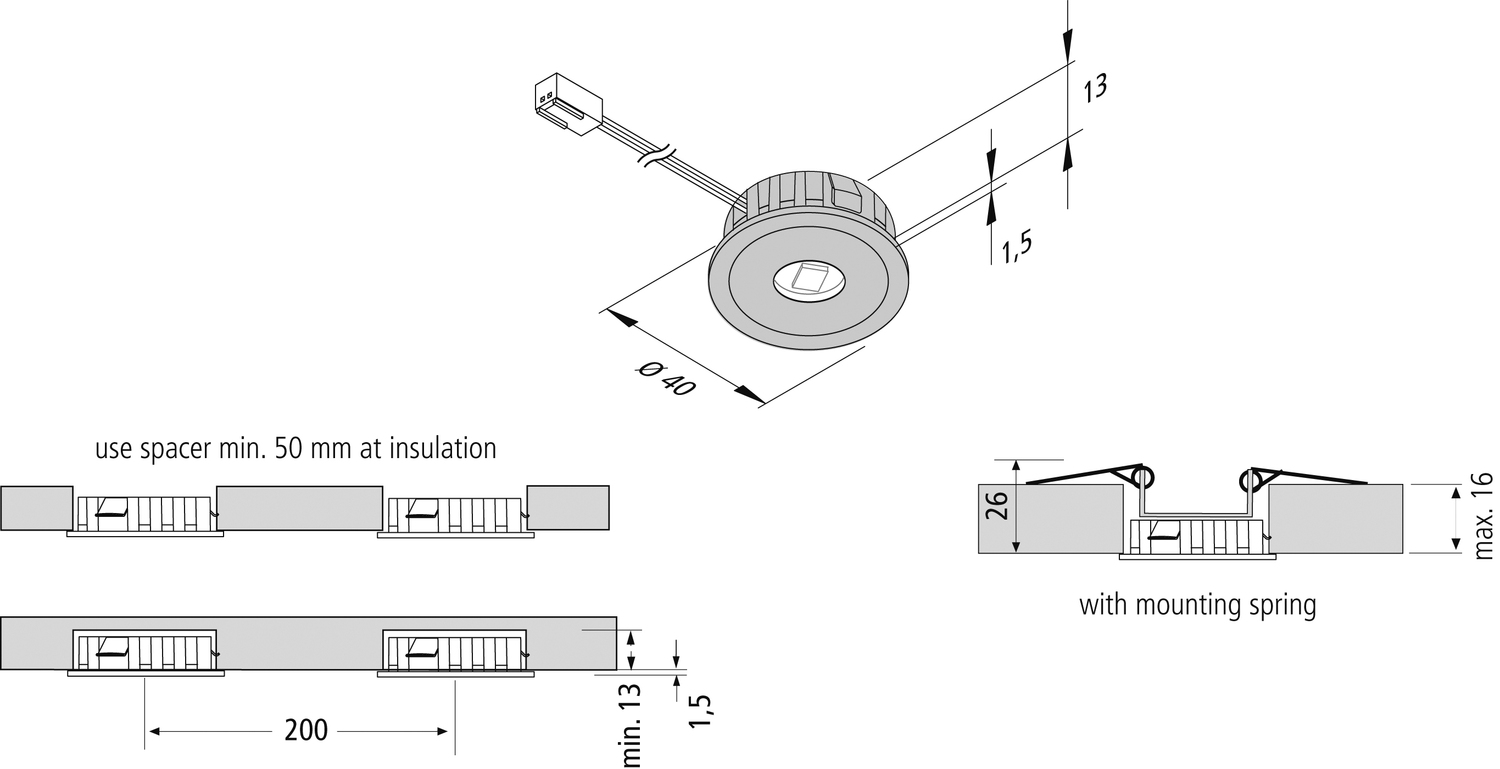

Drilling hole

35mm

Download data sheet as pdf file Download assembly instructions as PDF file Link to energy label (EPREL database)

AR 35 2,2W ww stainless-steel look

Flat LED recessed light for 35/45 mm cut-outs

Description:

AR 35 2,2 W ww Stainless-steel look for a targeted, high-quality Furniture- and Object lighting. Version: LED Transformer DC 24 V, Connector system LED 24, IP44 [with Blind hole]. Light colour: 3000 K warm white. The optionally available mounting spring also makes the product ideal for installation in lightweight ceilings.

Connection:

LED-Trafo DC 24V

Energy efficiency:

LED: 130 lm/W; Leuchte: 220 lm/m (100 lm/W)

Special features:

- Metal housing and Real-glass cover
- The optionally available mounting spring also makes the product ideal for installation in lightweight ceilings
- Light colour: 3000 K warm white
- Connection cable pluggable 2,5 m with LED 24 plug
- Design: Spot ?60°
- LED Transformer DC 24 V
- Connector system: LED 24
- Protection rating: IP44 [with Blind hole]
- Dimmable with compatible control
- Housing colour: Stainless-steel look
