AR 45
| 60° | Ø | ww | nw |
|---|---|---|---|
| 0,5m | 577 | 888 lx | 980 lx |
| 1,0m | 1155 | 222 lx | 245 lx |
| 1,5m | 1732 | 100 lx | 109 lx |
| 2,0m | 2309 | 56 lx | 61 lx |
| 2,5m | 2887 | 36 lx | 39 lx |
Drilling hole
45mm
AR 45 2,8W ww stainless-steel look

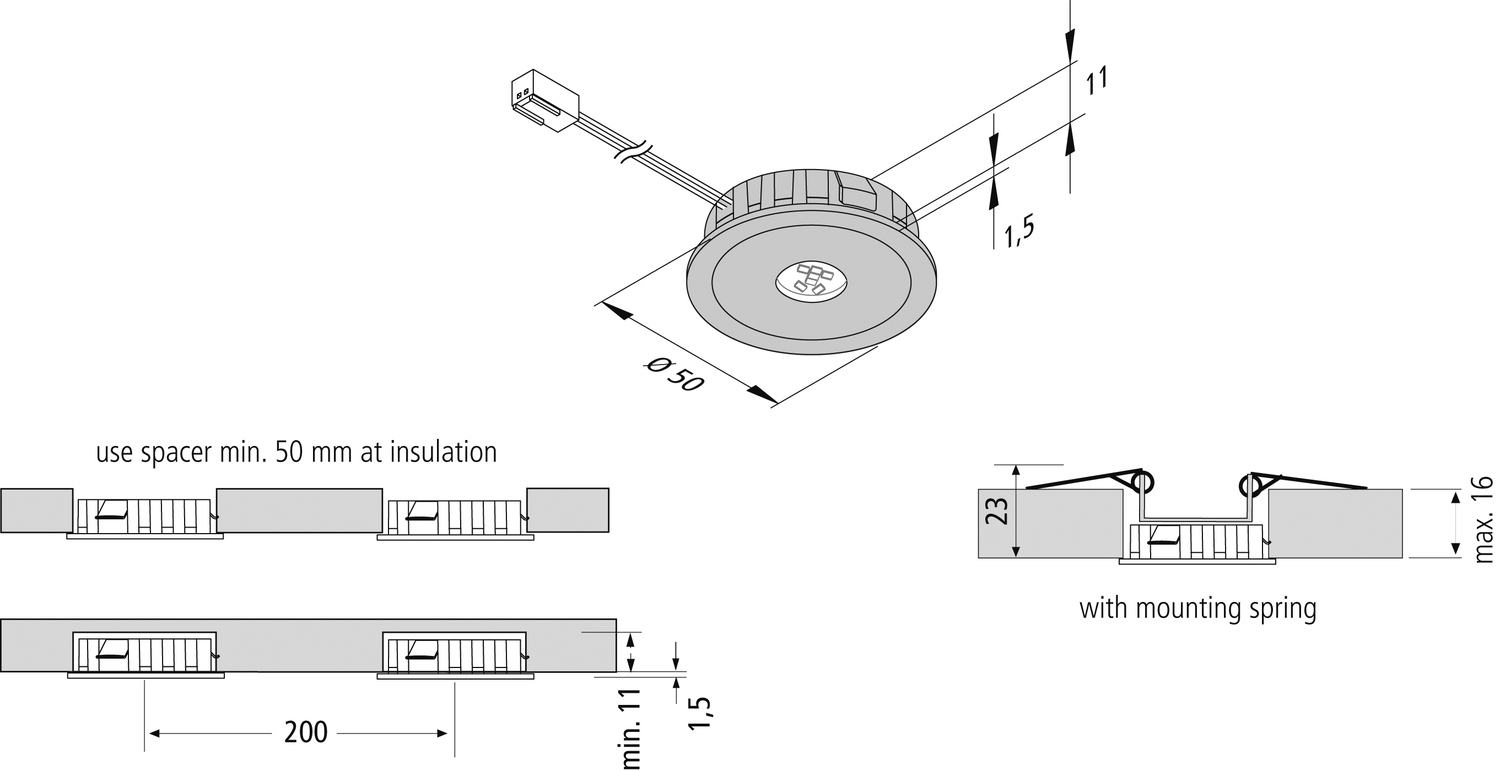

Flat LED recessed light for 35/45 mm cut-outs
Description:
LED-Recessed spotlight, Housing Aluminium, Connection cable 2,5 m pluggable with LED 24 plug, light colour warm white approx. 3000 K, Quick and easy installation using Snap hooks, optional accessories: Screw-on mounting spring for secure support in lightweight ceilings. The optionally available mounting spring also makes the product ideal for installation in lightweight ceilings.Connection:
LED-Trafo DC 24VEnergy efficiency:
LED: 166 lm/W; Leuchte: 337 lm/m (127 lm/W)Special features:
- Metal housing and Real-glass cover
- The optionally available mounting spring also makes the product ideal for installation in lightweight ceilings
- Dimmable
- Light colour: 3000 K warm white
- Connection cable pluggable 2,5 m with LED 24 plug
- Design: Spot ?60°
- LED Transformer DC 24 V
- Connector system: LED 24
- Protection rating: IP44 [with Blind hole]
- Dimmable with compatible control
- Housing colour: Stainless-steel look
Hinweis:
- Only operate with a suitable power supply for LED Transformer DC 24 V and LED 24 connector system
Order number:
20202461802
limited availability
available versions
Choose from the options below. The currently selected one is highlighted in color.
| article number | description | light colour |
|---|---|---|
| 20202461802 | AR 45 2,8W ww stainless-steel look | 3000K Warm white |
| 20202461803 | AR 45 2,8W nw stainless-steel look | 4000K Neutral white |
| 20202461812 | AR 45 3,1W ww stainless-steel look | 3000K Warm white |
| 20202461813 | AR 45 3,1W nw stainless-steel look | 4000K Neutral white |
