Dynamic FR 55
| 110° | Ø | ww | nw | cw |
|---|---|---|---|---|
| 0,5m | 1428 | 312 lx | 328 lx | 344 lx |
| 1,0m | 2856 | 78 lx | 82 lx | 86 lx |
| 1,5m | 4284 | 35 lx | 36 lx | 38 lx |
| 2,0m | 5713 | 20 lx | 21 lx | 22 lx |
| 2,5m | 7141 | 12 lx | 13 lx | 14 lx |

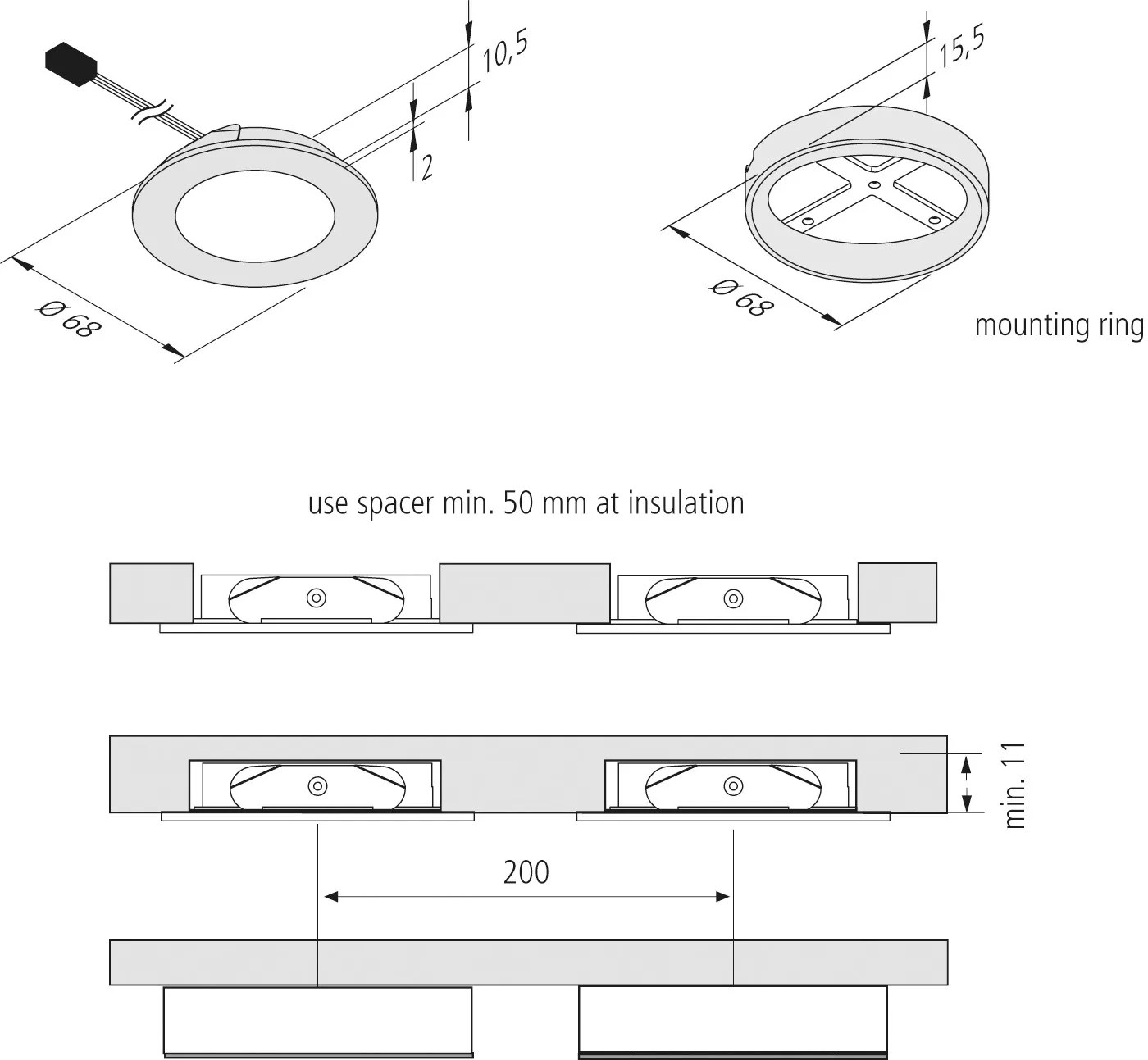

Drilling hole
55-58mm
Dynamic FR 55-LED 3W black
LED recessed light with area lighting and adjustable light colour
Description:
LED-Recessed spotlight with Area light, Plastic housing, Connection cable 2,5 m with Dynamic plug, Light colour adjustable between approx. 2700 K and 5000 K, Quick and easy installation using Snap hooks, optional accessories: Mounting ring for installation without a recessed hole, Control via Wireless-Remote control or WiFi-Controller.Connection:
LED-Trafo DC 24VEnergy efficiency:
LED: 113 lm/W; Leuchte: 210 lm/m (70 lm/W)Special features:
- Also for Sheet-metal installation suitable
- No visible points of light
- Light colour: 2700 - 5000 K (Dynamic) adjustable
- Connection cable 2,5 m with Dynamic plug
- Design: Wide-beam spotlight >80°
- LED Transformer DC 24 V
- Connector system: Dynamic
- Protection rating: IP44 [with Blind hole]
- Dimmable with compatible control
- Housing colour: Black
Hinweis:
- Only operate with a suitable power supply for LED Transformer DC 24 V and Dynamic connector system
Order number:
61001790103
limited availability
available versions
Choose from the options below. The currently selected one is highlighted in color.
| article number | description |
|---|---|
| 61001790103 | Dynamic FR 55-LED 3W black |
| 61001790106 | Dynamic FR 55-LED 3W matt chrome |
| 61001790108 | Dynamic FR 55-LED 3W stainless-steel look |
| 61057830108 | 3er Set Dynamic FR 55-LED 3W stainless-steel look |
