  • Pipe F
    Pipe F
    LED-Pipe-F_3D_en
    Pipe F
    Pipe F

    Pipe F

    120° Ø ww nw
    0,5m 650 1324 lx 1360 lx
    1,0m 1300 331 lx 340 lx
    1,5m 1950 147 lx 151 lx
    2,0m 2600 83 lx 85 lx
    2,5m 3250 53 lx 54 lx

    Pipe F

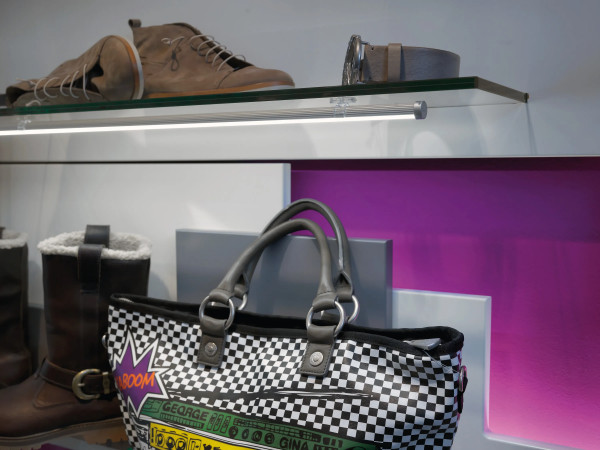

    360° rotatable, homogeneous aluminium over cabinet luminaire  LED Pipe F 610mm 11,4W ww

    5 Jahre

    Description:

    Rotating, rande LED under-cabinet luminaire with homogeneous planar light, housing anodized aluminium, supply cable 25mm with LED 24 plug and connecting cable 25mm with LED 24 socket, easily assembly withtels beiliegenden screws, colour appearance warm white approx.3000K, accessories available: magnet holding clip for Blechassembly, dim controller with radio telecontrol, DALI or 1-10V dim controller with Funkfernbedienung, DALI or 1-10V

    Connection:

    LED-Trafo DC 24 V

    Life:

    L70/B10 >= 60.000 h

    Energy efficiency:

    LED 107 lm/W; luminaire: 1100 lm/m (51 lm/W)

    Colour rendering:

    Ra/CRI >= 95

    Special features:

    • LEDs rotating 360°, max. 60 W per supply cable, assembly with screws in wood or with magnet holding clip as accessory, no visible luminous spots
  • 61001610202
  • article in stock
  • available versions

    Choose from the options below. The currently selected one is highlighted in color.

    article number description light colour
    61001610102LED Pipe F 310mm 5,8W ww3000 K warm white
    61001610202LED Pipe F 610mm 11,4W ww3000 K warm white
    61001610302LED Pipe F 910mm 17,0W ww3000 K warm white
    61001611402LED Pipe F 1210mm 22,3W ww3000 K warm white
    61001610103LED Pipe F 310mm 5,8W nw4000 K neutral white
    61001610203LED Pipe F 610mm 11,4W nw4000 K neutral white
    61001610303LED Pipe F 910mm 17,0W nw4000 K neutral white
    61001611403LED Pipe F 1210mm 22,3W nw4000 K neutral white
